Rudder Upgrade Part 1

Postby C22Bob » Fri Nov 09, 2012 1:41 pm

Here's a link to Rudder Upgrade Part 2 that shows the retractable rudder design

Restoring a C22 over the next few months and will be posting several enhancements I have planned for her. For starters, I'm making serious design changes to the thru-hull rudder. The original design was seriously lacking as a system to support and pivot 50 lbs of SS plate and rudder board. The first two pix are what I started with, and will be familar to most everyone.

First change - I proceeded to build a crossbar to support the rudder sleeve. Crossbar made from 1/4" aluminum plate, with center clamp machined from 3/8" alum plate stock. Added angle brackets on end for mounting to the stern quarter sections.

The bottom rudder bearing has most of the load and the new support will ensure the bottom sleeve is solid during hard steering and the occasional grounding.

Here's the crossbar installed. Also took the opportunity to reinforce around rudder pipe sleeve with Marine-Tex


and a close-up of the center clamp showing the sleeve with inserted flange bearing. Flange bearings are available at several places, but I purhcased mine at McMaster-Carr. (57785K39 Uhmw Bearing, Flange, For 1-1/2" Shaft Dia, 1-3/4" Od, 2" Length )


Moving on to the top bearing. First, prep the lcoation for the bearing bracket. Cut the original rudder support out of the cockpit sole while also cutting vertically. Looking aft in your cut-out, notice the section of reinforced fiberglass built into the stern locker wall. That section has the perfect angle for mounting my alum angle bracket. It's almost like it was made for it!


Here's another view from inside the stern locker


Now, the bracket itself. Cut from 3/8" alum angle. Machined all the necessary holes and mounted a flange adaptor to hold the rubber hose that connects between the top and bottom bearing.

That part number is McMaster-Carr 4657N35 Quick-access Flanged Pipe Fitting, 2" Flange X 2" Hose Barb, Adapter, Black, Polypro


Bracket mounted (after carefully testing with my working rudder pipe. BTW, if you need a section of pipe the exact diameter of the rudder, go to Lowes and get a section of 1 1/4" EMT electrical conduit)


Now, moving on to installing the main top bearing. I purchased a 4-bolt UHMW pillow block from W. W. Grainer (part #1F554). The bore was 1" which was OK with me because I wanted to bore a new hole for a nice tight fit with rudder. Added a UHMW thrust bearing and SS collar. At this point, the bearing assy is almost finished.
The first collar limits the downward travel, but I still need something to limit the upward movement.


So, placing a spacer section of pillow block and topping off with cover accomplishes that. The final collar isn't really needed, but added anyway for looks. Bolted everything down with some SS bolts.
Voila! The rudder you never have to worry about!

(The spacer section was cut from another pillow block that I cut in half, hole sawed a 3" section out of one piece which became the middle, and 1 1/2" hole for the other which became the top. Look carefully and you'll see 3 sections that make up the assy.)


Obviously, I still need to seal around the bearing assy. I plan to do that with a rubber boot. I'll try to post that as my final pic later.

Finishing up the top section

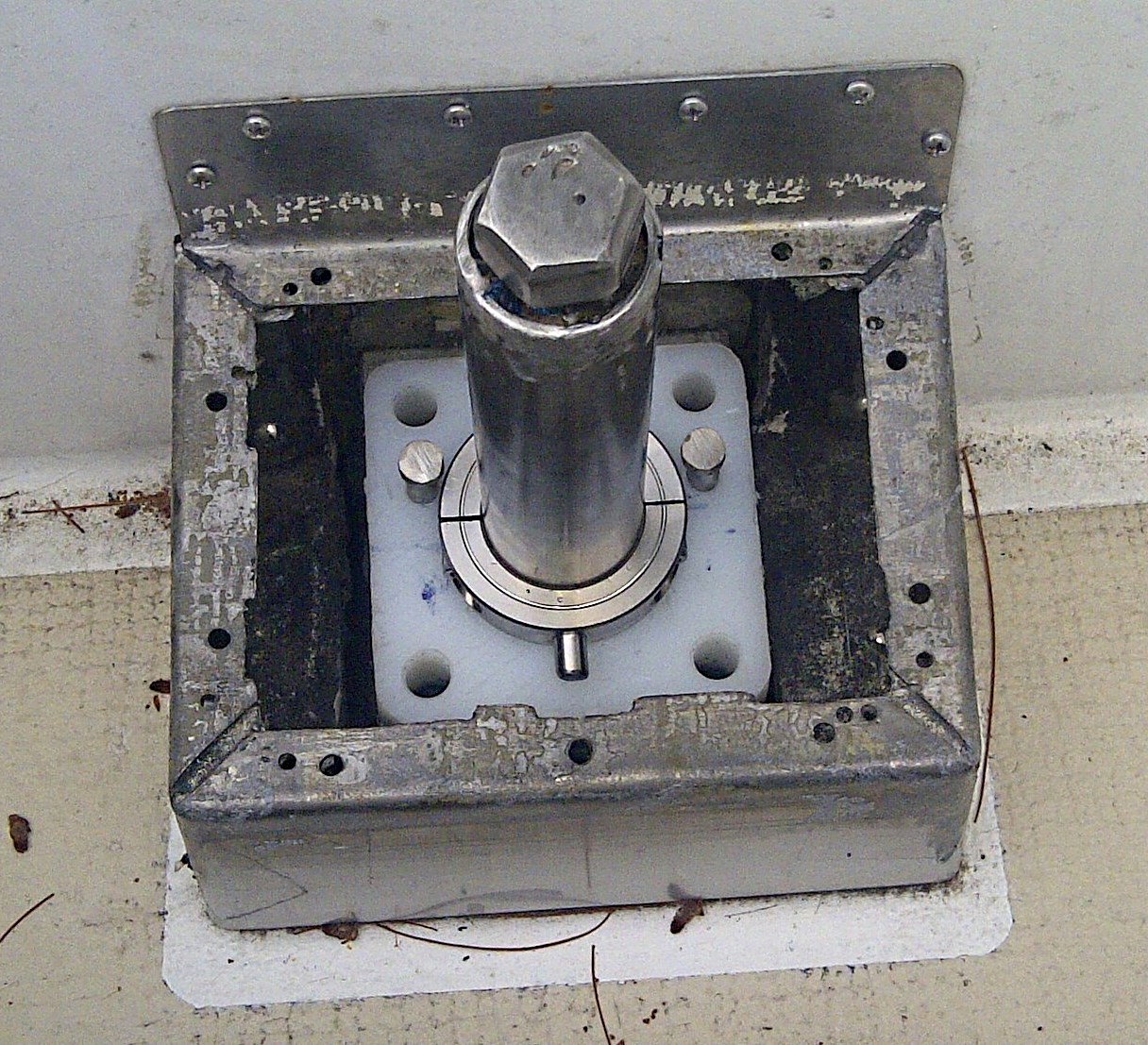

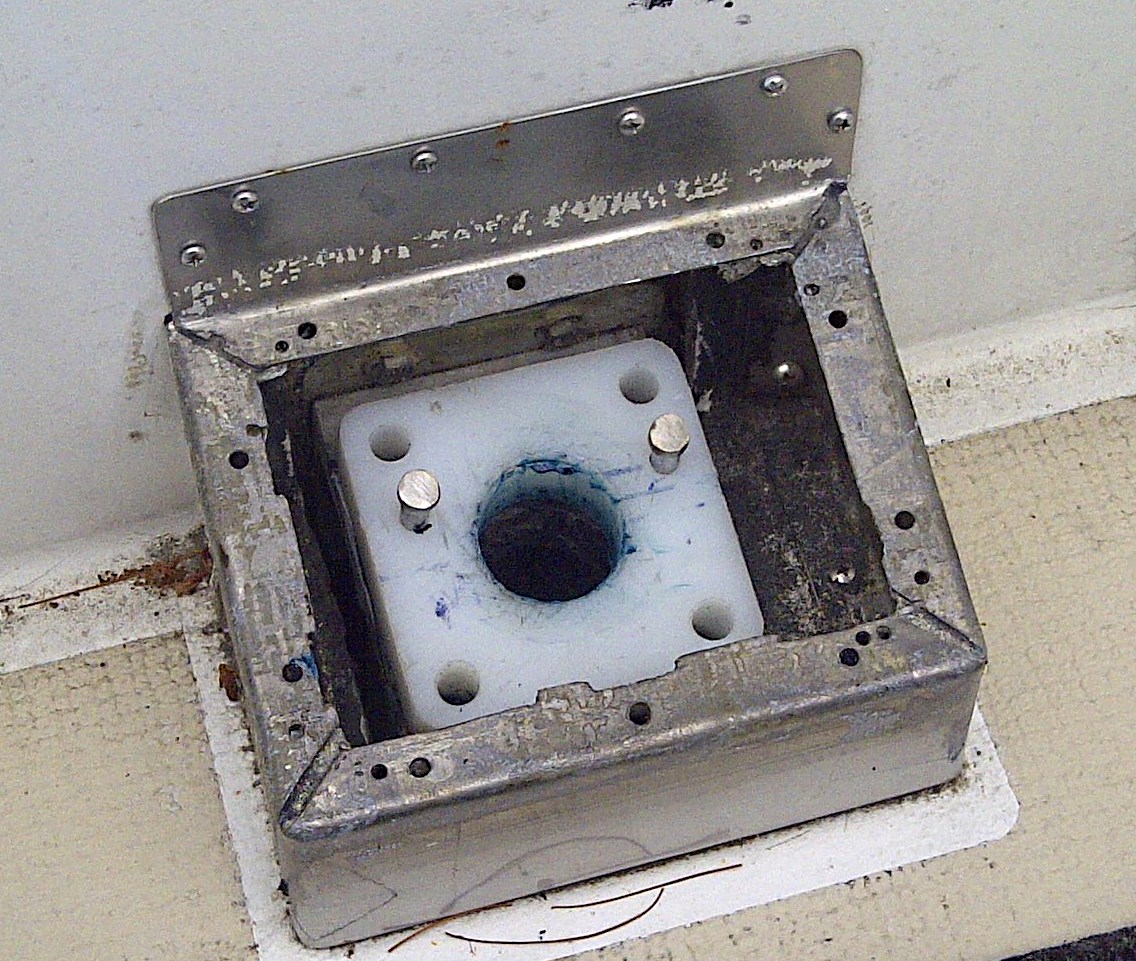

I built a stainless steel box enclosure for the top bearing assy. The UHMW block has two stainless pins to act as stops. Rudder is limited to about 200 degrees of movement. Added SS locking collar

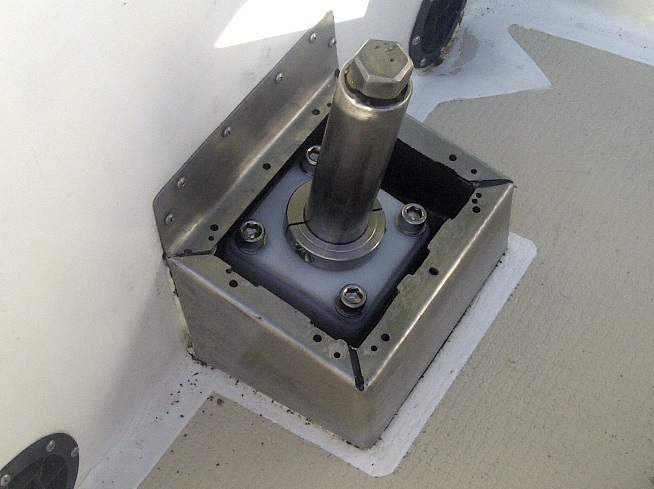

Finished it off with a top plastic cap,..same UHMW material. Bolted it down and added a backup locking collar. The cap is also important for making sure the rudder post stays in poistion vertically. The cap keeps rudder from being pushed up


Here's a view from below.

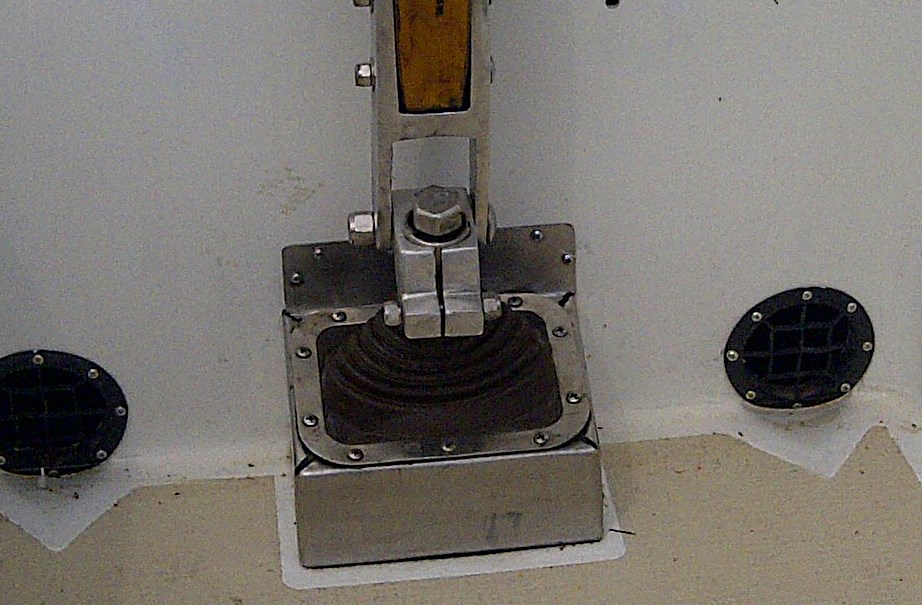

Here's the finished product showing the rubber boot cover and tiller attached...


My design is one of many that I'm sure have been installed by Chrysler owners over the years. I hope it inspires you to take your vessel steerage to the next level.
